The PACA profile

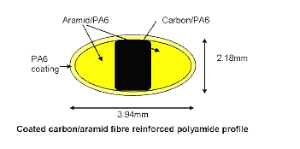

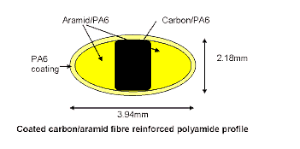

The profile consists of discrete stripes of carbon and aramid fibre reinforced nylon-6 with an integral coating of the same nylon 6 giving a glossy splinter-free finish. The fibres used are continuous and in the longitudinal direction.
stacks_image_56A22CD0-EE74-434F-8F3F-237387C66501
stacks_image_9611400A-A088-45B6-A5DA-937E0365A117
Fibre Volume fraction of composite area~50% Made with:
  • Teijin Aramid 2200 fibres
  • Toray T700 carbon fibres
  • Ultramid b3 Polyamide 6
Ordering Information
This profile is generally made to order, although small quantities are available from stock.
Please contact us for a quote providing quantities and length(s) required
