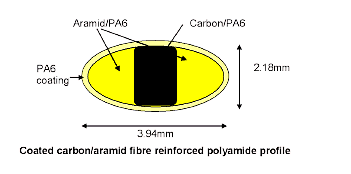

The PACA profile The profile consists of discrete stripes of carbon and aramid fibre reinforced nylon-6 with an integral coating of the same nylon 6 giving a glossy splinter-free finish. The fibres used are continuous and in the longitudinal direction.
Fibre Volume fraction of composite area~50% Made with:
Teijin Aramid 2200 fibres
Toray T700 carbon fibres
Ultramid b3 Polyamide 6
Mechanical Properties

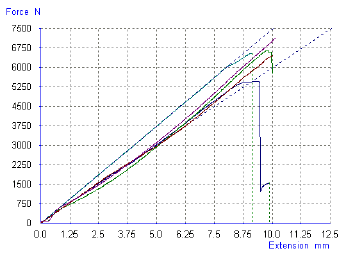

Graph of load/extension from tensile tests 150mm gauge length, tested at 2mm/min
Units
Value
Failure Load
N
6694
Tensile Strength
MPa
987
more results coming soon- under evaluation
Ordering Information This profile is generally made to order, although small quantities are available from stock. Please contact us for a quote providing quantities and length(s) required
